Web Preview

Preview localhost development servers directly in Schaltwerk without switching to a browser

Schaltwerk includes a built-in web preview panel for viewing localhost development servers directly in the app. When you click a localhost link in terminal output, it opens in the preview panel automatically—no browser switching required.

Getting Started

1. Start a dev server

   Run your development server in the terminal (e.g., npm run dev, bun run dev)

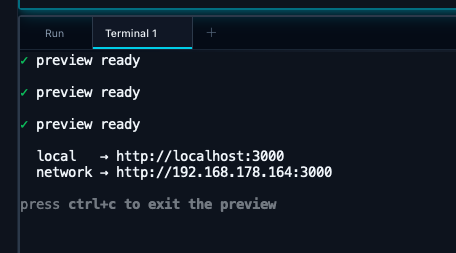

2. Click the localhost link

   When the server logs a URL like http://localhost:3000, click it in the terminal output


3. Preview opens automatically

   The right panel switches to the Preview tab and loads your site



By default, clicking localhost URLs in terminals opens them in the preview panel. To open them in your browser instead, go to Settings → Run & Environment and disable “Preview localhost on terminal click”.

Developing Web Apps

The preview panel lets you see your web app while agents make changes. Hot module replacement works seamlessly—as the agent modifies code, the preview updates automatically.

Supported URL formats:

• Bare port: 3000 → http://localhost:3000
• Hostname: localhost:3000 → http://localhost:3000
• Full URL: http://localhost:3000/dashboard

You can also type directly in the address bar or enter just a port number.

Giving Feedback with Element Picker

The element picker lets you select any element on the page and send its HTML to the agent—perfect for pointing out specific UI issues.

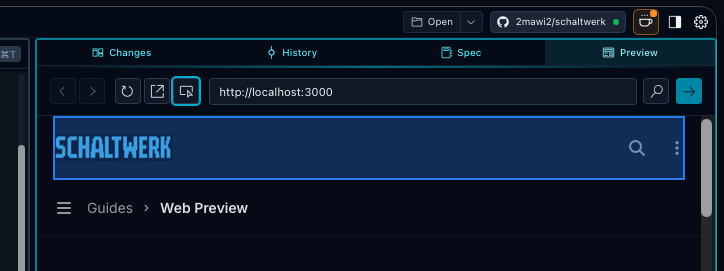

1. Click the element picker button

   In the preview toolbar, click the element picker button


2. Hover and click an element

   Move your cursor over the page—elements highlight as you hover. Click to select one.

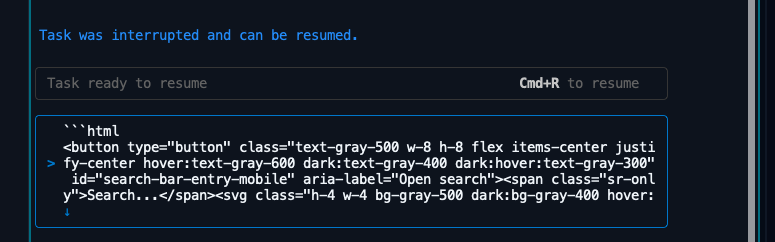

3. HTML appears in the terminal

   The selected element’s HTML is pasted as a code block in the active terminal, ready for the agent to see


4. Continue the conversation

   Now you can tell the agent exactly what to change: “Make this button blue” or “Add padding to this card”

Toolbar Controls

From left to right:

• Back / Forward arrows — Navigate through your browsing history
• Refresh — Reload the current page
• Open external — Open the URL in your default browser
• Element picker — Enable element selection mode
• URL input — Enter a URL or port number
• Zoom — Adjust the preview scale (50%–200%)

Keyboard shortcuts: ⌘= zoom in, ⌘- zoom out, ⌘0 reset zoom

Multiple Sessions

When running multiple sessions with dev servers, use different ports to avoid conflicts:

# Session 1
PORT=3001 npm run dev

# Session 2
PORT=3002 npm run dev

Each session maintains its own preview URL, so you can switch between sessions without losing your place.

Limitations

• No DevTools — For full debugging, click the external link button to open in your browser
